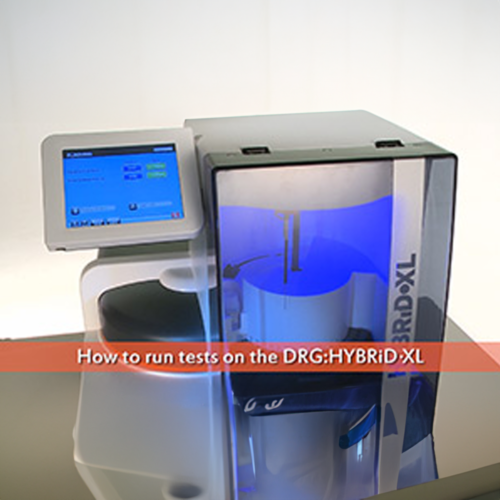

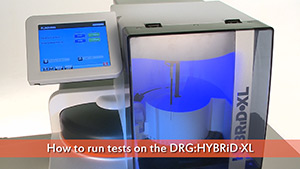

DRG:HYBRiD-XL®

Description

Fully automated Random Access Analyzer for Immunoassays and Clinical Chemistry

Features:

Innovation
DRG introduces the totally newly designed DRG:HYBRiD-XL^® Analyzer.
This innovative and unique technology allows, for the first time, the simultaneous measurement of immunoassays and clinical chemistry parameters including turbidimetric tests in one sample.
The comprehensive assay menu includes routine and niche parameters.

Specifications

Test Principle:

Enzym Immunoassys
Clinical Chemistry
Immunoturbidimetry

Samples/Cartridges:

Up to 40 samples / run
(36 primary tubes or 40 secondary tubes)
Random access possible
STAT possible
Reagents on board (cartridge); (ready to use)
Barcoded reading of samples and reagents
Serum, plasma, stool, urine or saliva samples
Sample dilution up to 1:1000

Calibration:

Barcoded master curve
2 point recalibration
Long stability

Efficiency:

First results after 10 minutes
Long walk away times
Short hands-on times
Benchtop analyzer (60,8 x 63,5 x 58,6 cm high)
Only 3 system-reagents (Wash/Needle cleaning and system solution)
Clot detection
Liquid level detection
Variable assay-sizes (40, 80 tests)

Handling/Interface:

Color monitor, touchscreen (8,5 inch.)
Smart user guidance
Bi-directional interface

PRODUCT	METHOD	CAT NO.	QUANTITY	INCUBATION TIME
17-OH Progesterone	EIA	HYE-5333	40 Tests	90 min
25-OH Vitamin D (total)	EIA	HYE-5334	40 Tests	120 min
AFP	EIA	HYE-5337	40 Tests	60 min
Aldosterone	EIA	HYE-5338	40 Tests	90 min
AMH	EIA	HYE-5770	40 Tests	90 min
Androstenedione	EIA	HYE-5339	40 Tests	90 min
Anti-DGP IgA	EIA	HYE-5819	40 Tests	120 min
Anti-DGP IgG	EIA	HYE-5820	40 Tests	120 min
Anti-tTG IgA	EIA	HYE-5894	40 Tests	120 min
Anti-tTG IgG	EIA	HYE-5895	40 Tests	90 min
Beta hCG	EIA	HYE-5359	40 Tests	90 min
Calprotectin (stool)	EIA	HYE-5767	40 Tests	60 min
Ceftazidime	EIA	HYE-6166	40 Tests	60 min
Cortisol	EIA	HYE-5343	40 Tests	60 min
CRP	CCH	HYC-5319	80 Tests	10 min
CRP-HS	CCH	HYC-5613	80 Tests	10 min
Cystatin C	CCH	HYC-5320	80 Tests	10 min
D-dimer	CCH	HYC-5321	80 Tests	10 min
DHEA	EIA	HYE-5346	40 Tests	60 min
DHEA-S	EIA	HYE-5347	40 Tests	90 min
DRG:HYBRiD-XL Analyzer		HYB-5252	1
Estradiol	EIA	HYE-5349	40 Tests	90 min
Fecal Extraction System 2.6		HYI-5989	100 Tubes
Free Estriol	EIA	HYE-5351	40 Tests	90 min
free T3	EIA	HYE-5356	40 Tests	90 min
free T4	EIA	HYE-5357	40 Tests	90 min
Free Testosterone	EIA	HYE-5378	40 Tests	90 min
FSH	EIA	HYE-5355	40 Tests	90 min
HbA1c	CCH	HYC-5325	80 Tests	10 min
Hepcidin 25 (bioactive)	EIA	HYE-5769	40 Tests	120 min
Insulin	EIA	HYE-5361	40 Tests	120 min
LH	EIA	HYE-5362	40 Tests	90 min

Linezolid	EIA	HYE-6163	40 Tests	60 min
Pancreatic Elastase (stool)	EIA	HYE-6123	40 Tests	90 min
Piperacillin	EIA	HYE-6164	40 Tests	60 min
Procalcitonin (PCT)	CCH	HYC-6210	80 Tests	10 min
Progesterone	EIA	HYE-5368	40 Tests	90 min
Prolactin	EIA	HYE-5369	40 Tests	90 min
PSA	EIA	HYE-5370	40 Tests	90 min
PSA, free	EIA	HYE-5371	40 Tests	120 min
Renin (active)	EIA	HYE-5373	40 Tests	150 min
Salivary Cortisol	SLV	HYE-5344	40 Tests	150 min
T3	EIA	HYE-5697	40 Tests	90 min
T4	EIA	HYE-5698	40 Tests	90 min
Testosterone	EIA	HYE-5376	40 Tests	90 min
TM-CA 72-4	EIA	HYE-5382	40 Tests	120 min
TSH	EIA	HYE-5385	40 Tests	150 min
